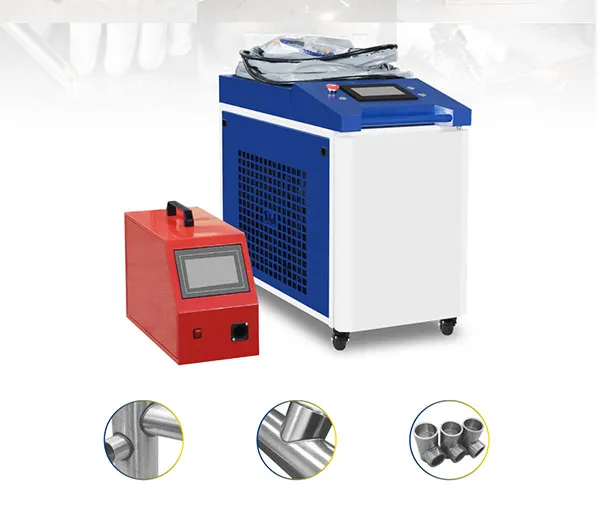

Handheld Water-Cooled Laser Welding Machine Manufacturer

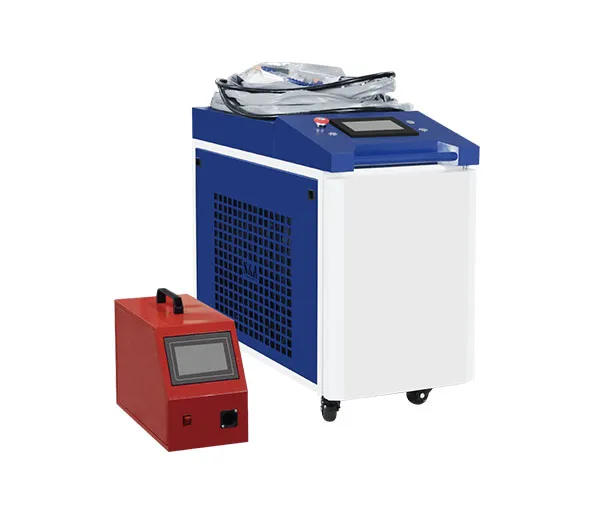

Handheld Water-Cooled Laser Welding Machine – S&A Chiller

Jobon Laser welding machines are engineered for high-speed, high-precision metal joining. Our handheld and platform models support stainless steel, aluminum, copper, and more. Equipped with fiber laser sources and intelligent control systems, they offer clean welds, minimal deformation, and low operating cost. Ideal for automotive parts, kitchenware, and industrial components.

Get a Quote

Product introduction

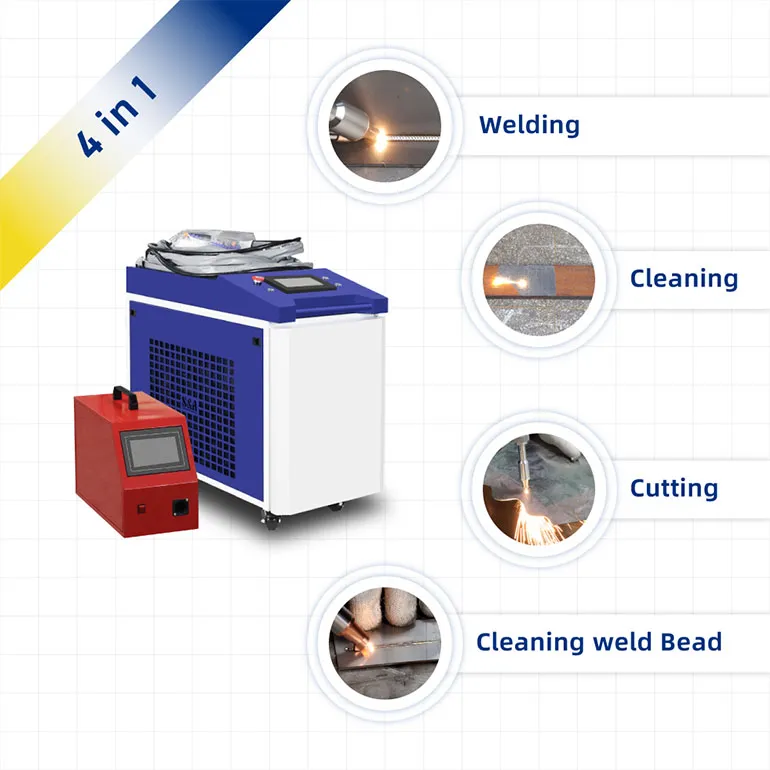

This equipment has 4 functions: welding, cutting, remote cleaning and weld seam cleaning. The operator interface is simple, easy to operate and easy to use. The ultra-lightweight laser head is equipped with dual protective lenses, which solves the vulnerability problem of the focusing lens of traditional handheld welders. It saves maintenance cost for customers. The device is also equipped with an intelligent temperature monitoring system that automatically detects the lens temperature. If the temperature exceeds the set value, an alarm is triggered and the unit stops working.

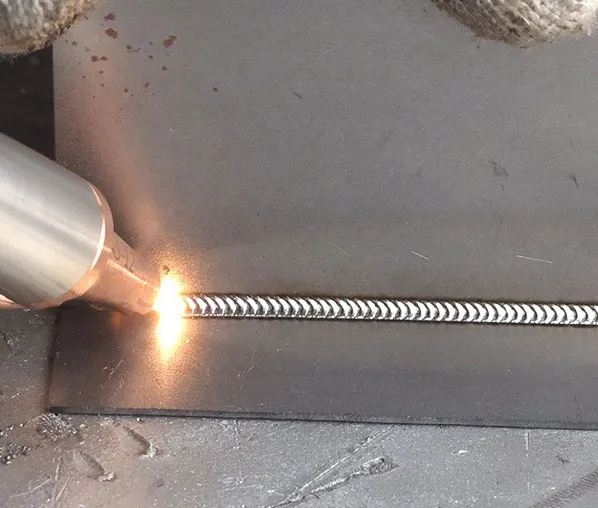

Welding Cleaning Cutting Cleaning weld seam

Product Overview

Item	ZB-TY1000 / 1500 / 2000	ZB-TY3000 / 6000
Laser Power	1000 W / 1500 W / 2000 W	3000 W / 6000 W
Welding Thickness	0.1 – 6 mm	0.1 – 12 mm
Welding Width	0 – 5 mm (Double wire feed: 0 – 8 mm)	0 – 5 mm (Double wire feed: 0 – 8 mm)
Fiber Length	10 / 15 / 20 m (Customizable)	10 / 15 / 20 m (Customizable)
Cooling Method	Constant temperature circulating water cooling	Constant temperature circulating water cooling
Working Voltage	220V 1PH — 380V 3PH ; 50Hz / 60Hz	220V 1PH — 380V 3PH ; 50Hz / 60Hz
Machine Size	113 × 49.5 × 71 cm / 110 × 45 × 93 cm	—

Product Features

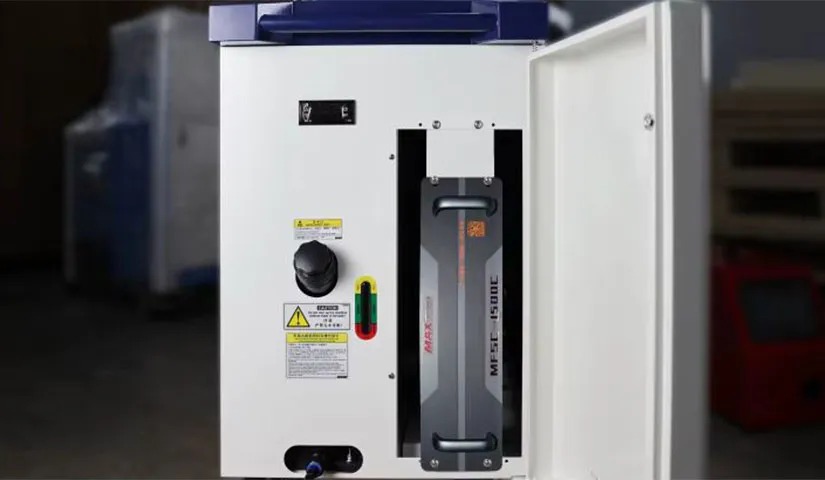

Stable laser source

Brand: MAX / Raycus / JPT / BWT Optional

Power: 1000W / 1500W / 2000W / 3000W / 6000W

We offer you world top class laser from China.With
1,000,000 service life. Support 2 years warranty.

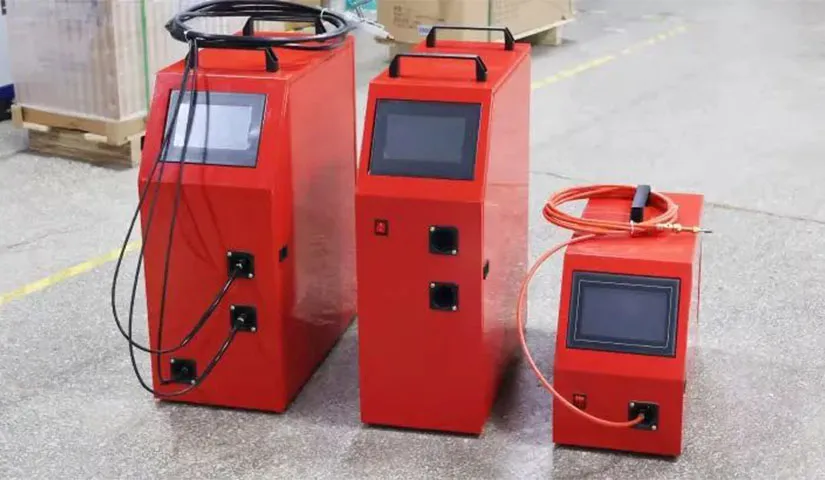

Wire feeder

Standard automatic wire feeding systemand dual motors.

The forward and reverse and the speed of wire feeding can be adjusted throughthe control panel.

Supports single-wire/double-wire/three-wire/four-wire welding, suitable for welds of different widths
NOZZLE

Different shapes of nozzles are suitable for different work.

Need to replace with grooved nozzleswhen used with a wire feeder.

When switching to cutting mode, a special nozzle for cutting is required.
Laser Head

Brand: SUPLaser/Raytools/Qilin/Au3tech/Relfar as optional

Welding/Cleaning/Cutting/Cleaning weld Bead

A variety of angle nozzles can beconfigured to meet the welding needs of different products.

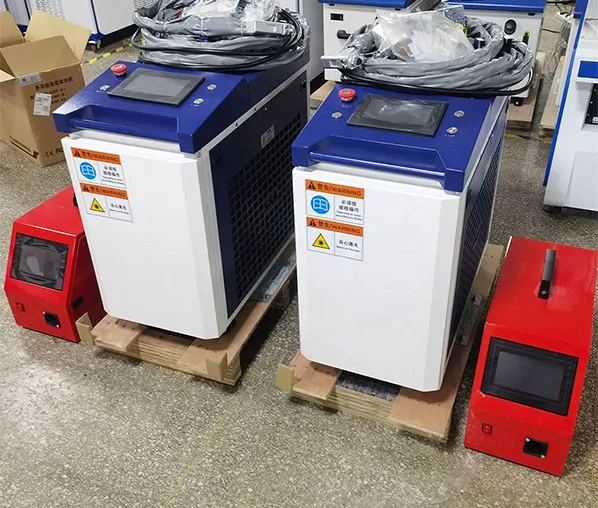

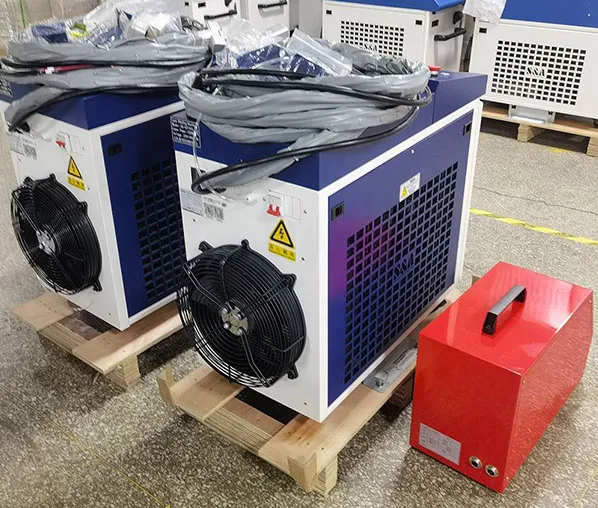

Water Chiller

Brand: S&A, Hanli famous brand as optional.

Adopted water chiller system, the virtu-ous cycle system to better guarantee the operation of the machine.

Industrial chiller, good cooling effect, support the machine working 24 hours per day.
Supply Spare Parts

Lens

Nozzles

Protect glasses

Protective mask filter, screwdriver

Wire and box for collecting thes eparts

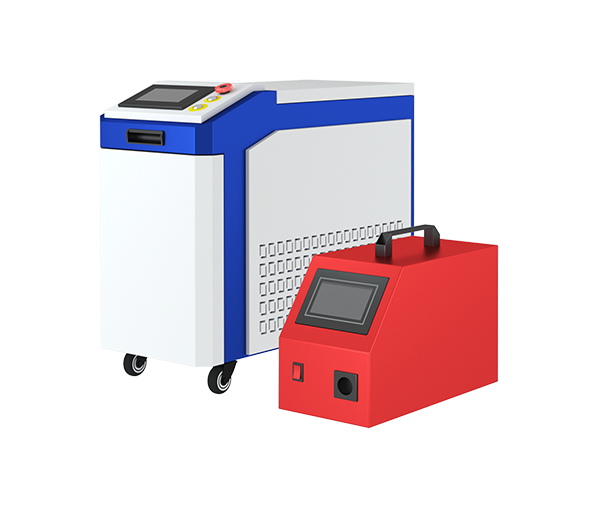

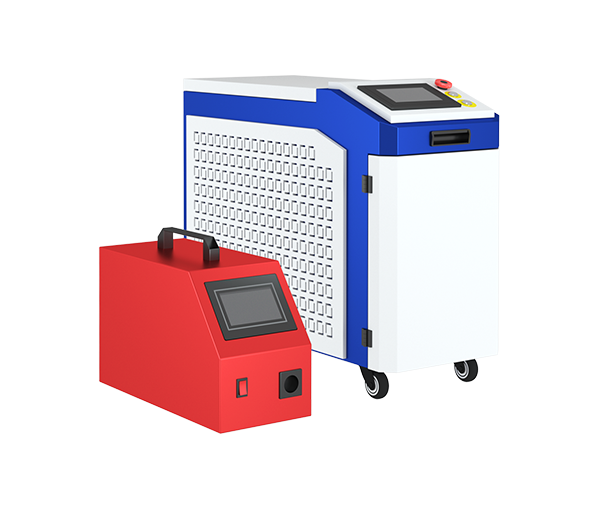

Handheld Water-Cooled Laser Welding Machine Dimensions

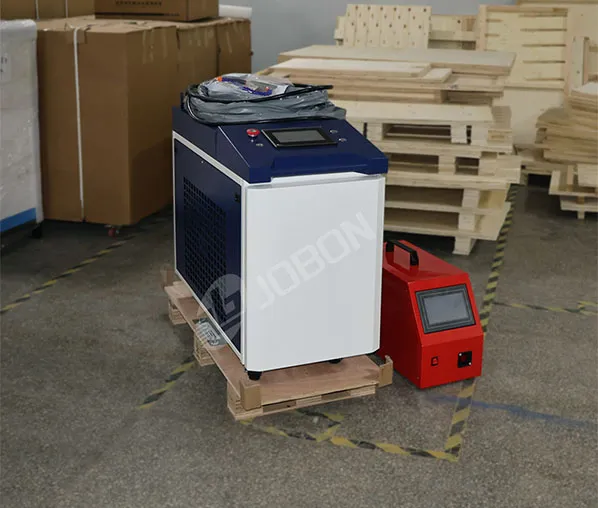

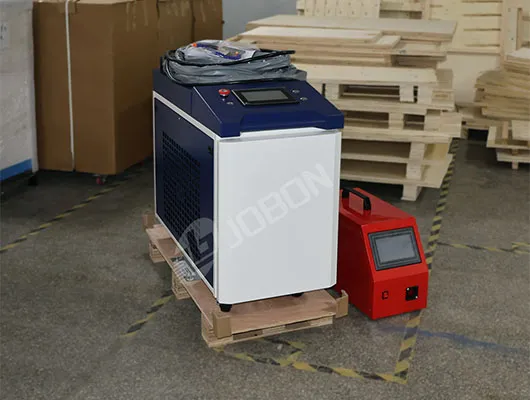

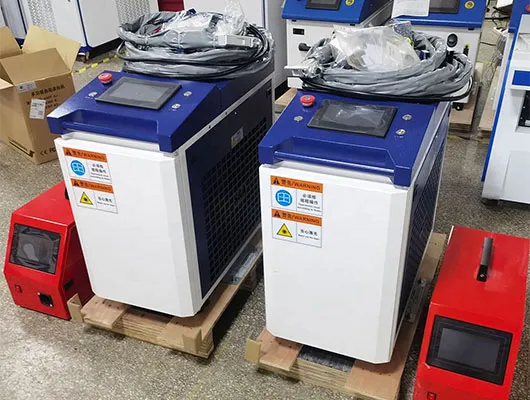

Product Display

It is widely used in complex and irregular welding processes in cabinets, kitchens and bathrooms, stair eleva-tors, shelves, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel home furniture, etc.
