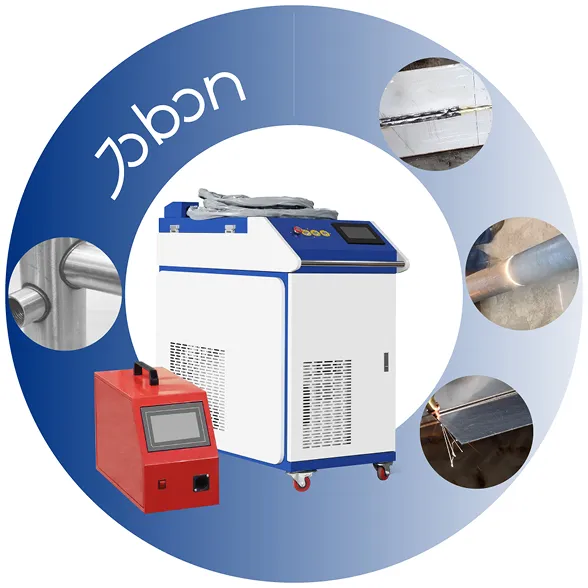

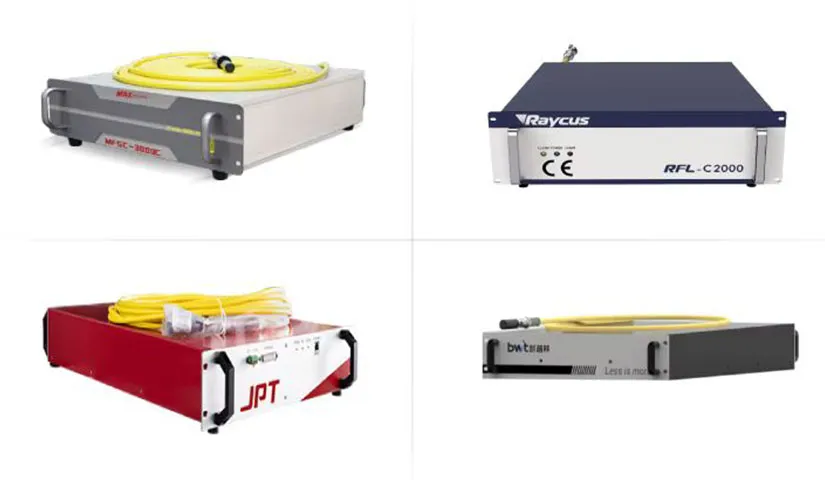

Jobon Laser welding machines are engineered for high-speed, high-precision metal joining. Our handheld and platform models support stainless steel, aluminum, copper, and more. Equipped with fiber laser sources and intelligent control systems, they offer clean welds, minimal deformation, and low operating cost. Ideal for automotive parts, kitchenware, and industrial components.

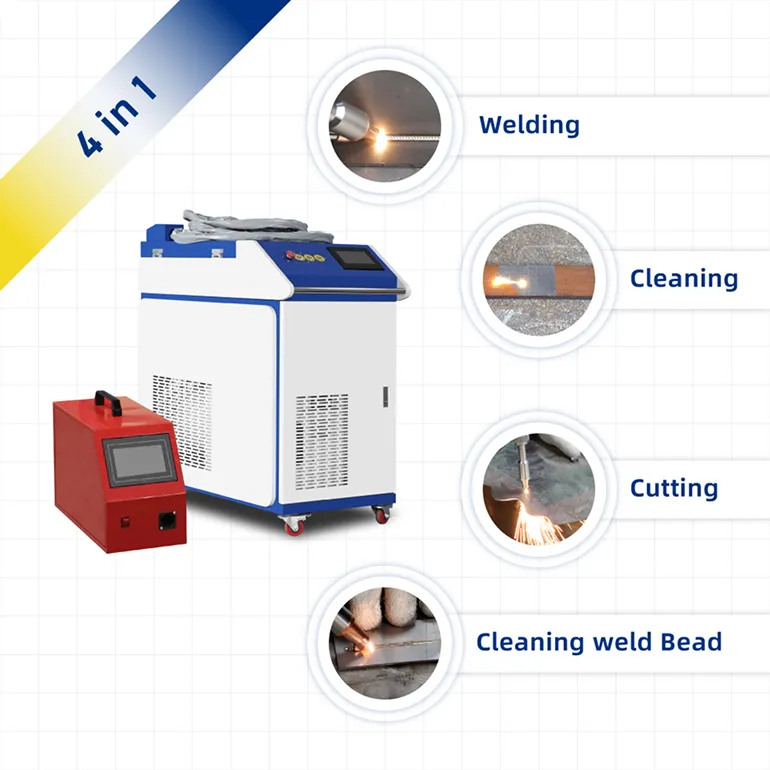

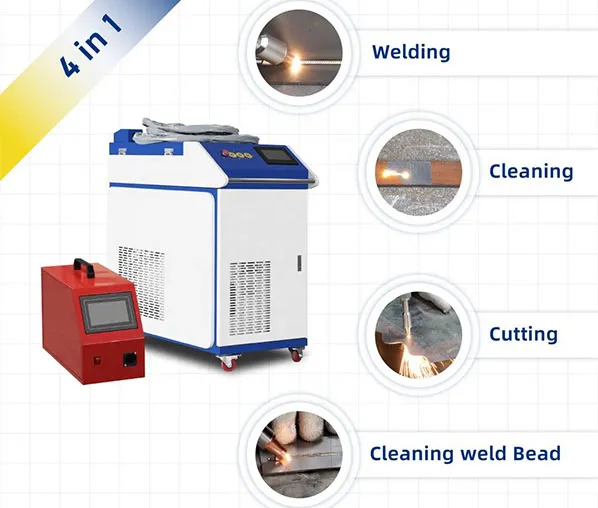

The equipment has 4 functions: welding,cutting,remote cleaning and cleaning weld seam.

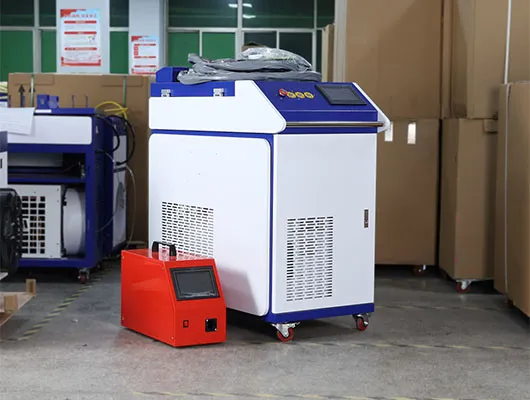

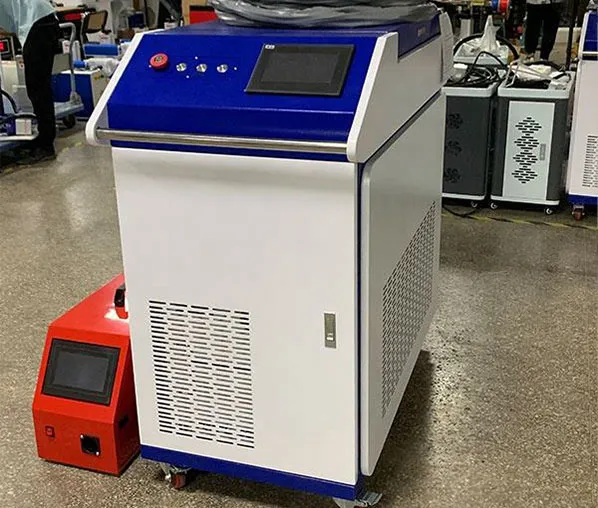

The equipment is small in size, occupies little space, low power supply, and it is more convenient to carry the welderin an unfixed position. The appearance color can be customized. The device is also equipped with anintelligent temperature monitoring system, which can automatically detect the temperature of the lens. If the temperature exceeds the set value, an alarm will be triggered and the device will stop working.
| Item | Specification |
|---|---|

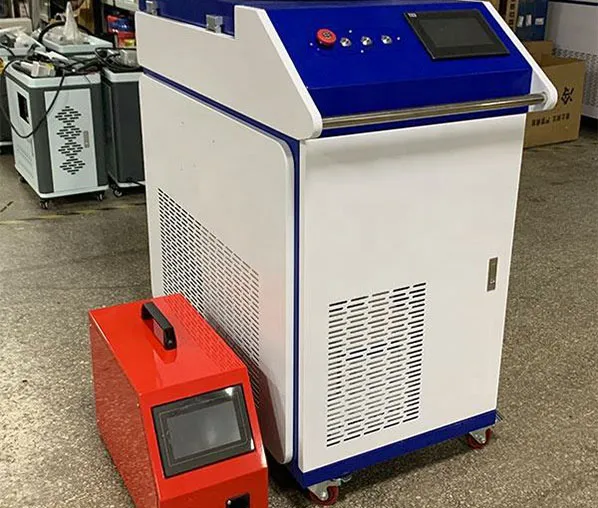

| Product Name | Handheld Laser Welding Machine |
| Equipment Model | ZB-SC1000 / ZB-SC1500 / ZB-SC2000 / ZB-SC3000 / ZB-SC6000 |
| Laser Power | 1000W / 1500W / 2000W / 3000W / 6000W |
| Welding Speed | 0–120 mm/s |
| Wire Diameter | 0.8 mm / 1.0 mm / 1.2 mm / 1.6 mm / 2.0 mm (2–3 kW models support double wire feeder) |
| Cooling Method | Water cooling |
| Working Environment | 15–35 °C, humidity < 70%, no condensation |
| Power Consumption | 1500W ≤ 7.5KW; 2000W ≤ 10KW; 3000W ≤ 15KW |
| Operating Voltage | 220V / 380V ±10%; 50Hz / 60Hz |
| Gas | Nitrogen / Oxygen |

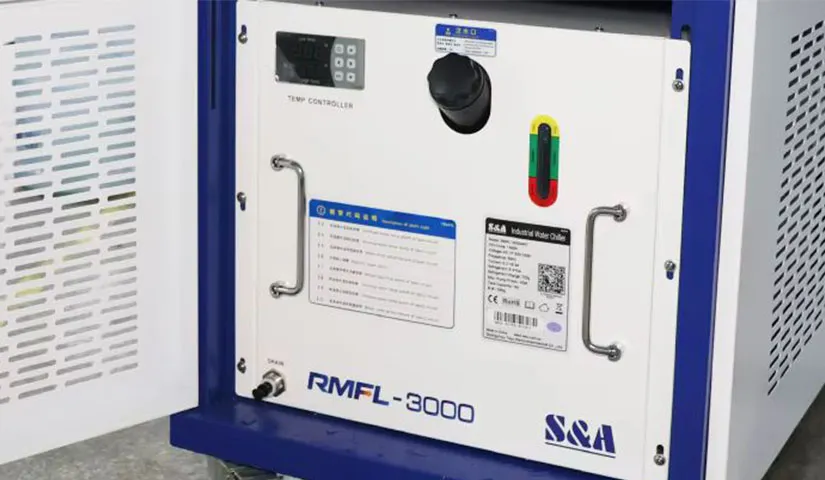

Our fiber laser machines are equipped with an industrial-grade water chiller system, ensuring continuous and stable operation even during extended 24/7 usage. We offer premium chiller brands like S&A and Hanli as optional configurations, both widely recognized in the laser industry for their reliability and performance.

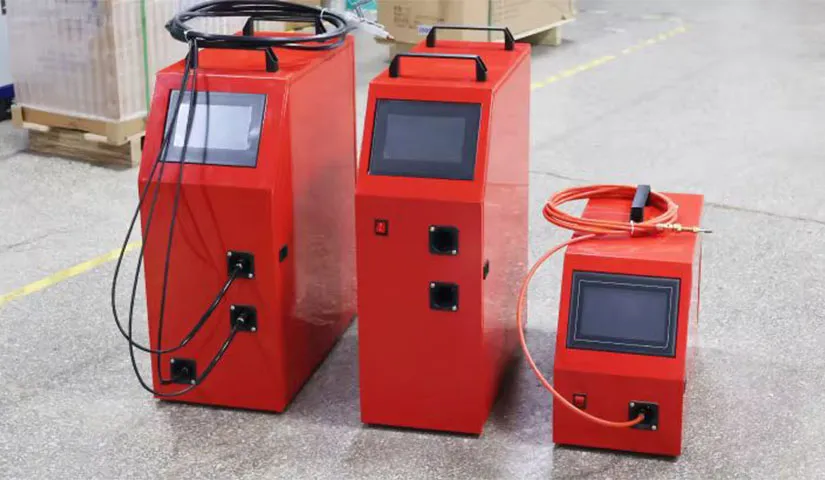

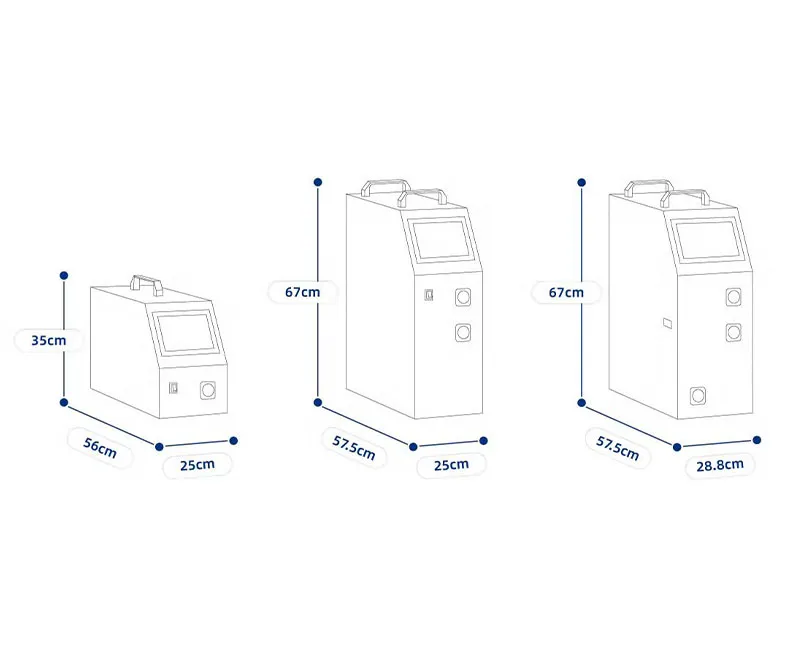

Our automatic wire feeding system features dual‑motor drive for stable and precise feeding during high‑duty laser welding work. The forward/reverse direction and wire feeding speed can be easily adjusted through the integrated digital control panel, ensuring accurate wire output for different welding requirements.

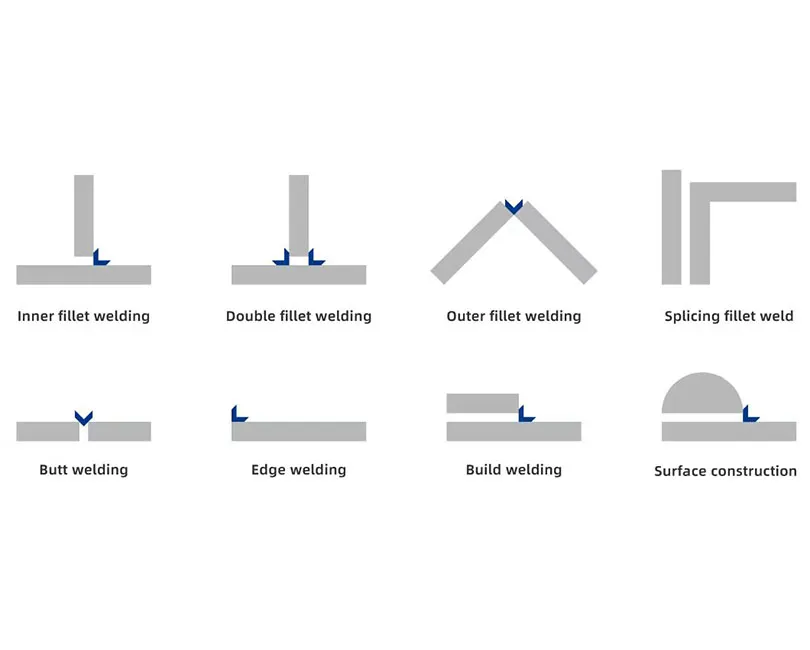

The system supports single‑wire, double‑wire, three‑wire, and four‑wire welding, making it ideal for wide‑gap welding, thick‑plate welding, and applications that require welds of different widths. This laser welding wire feeder delivers consistent performance across stainless steel, carbon steel, aluminum, and alloy materials.
This machine mainly used in IT, medical, electronics, batteries, metal parts, watch precision parts, automotive steel sheet and other industries, it has high welding efficiency, small heat affected zone, beautiful and firm solder joints, refractory materials also can make it. Main power is 1kw, 1.5kw, 2kw, 3kw, 6kw. It’s the best choice for customers.
Jobon delivers professional laser welding, cleaning, marking, and cutting solutions with global voltage support, OEM customization, CE certification, and export-ready quality — trusted in 60+ countries..
Jobon Laser welding machines are engineered for high-speed, high-precision metal joining. Our handheld and platform models support stainless steel, aluminum, copper, and more. Equipped with fiber laser sources and intelligent control systems, they offer clean welds, minimal deformation, and low operating cost. Ideal for automotive parts, kitchenware, and industrial components.
Jobon Laser welding machines are engineered for high-speed, high-precision metal joining. Our handheld and platform models support stainless steel, aluminum, copper, and more. Equipped with fiber laser sources and intelligent control systems, they offer clean welds, minimal deformation, and low operating cost. Ideal for automotive parts, kitchenware, and industrial components.
