Handheld Water-Cooled Laser Welding Machine Manufacturer

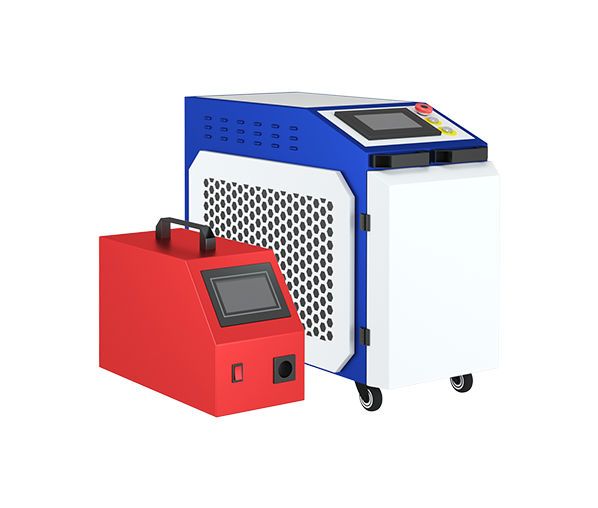

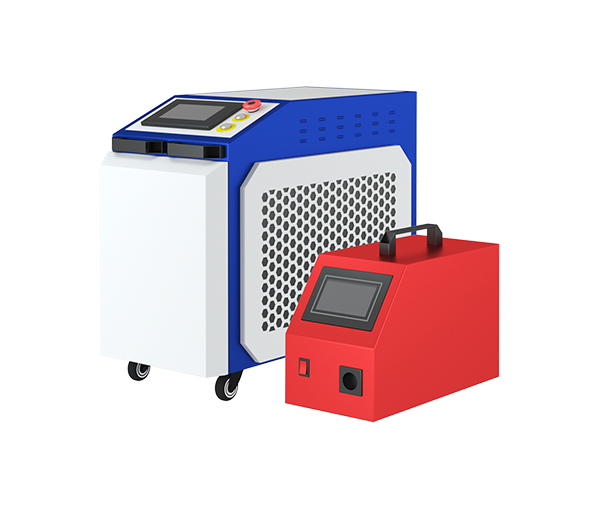

Handheld water-cooled laser welding machine – Hanli chiller

Jobon Laser welding machines are engineered for high-speed, high-precision metal joining. Our handheld and platform models support stainless steel, aluminum, copper, and more. Equipped with fiber laser sources and intelligent control systems, they offer clean welds, minimal deformation, and low operating cost. Ideal for automotive parts, kitchenware, and industrial components.

Get a Quote

Product introduction

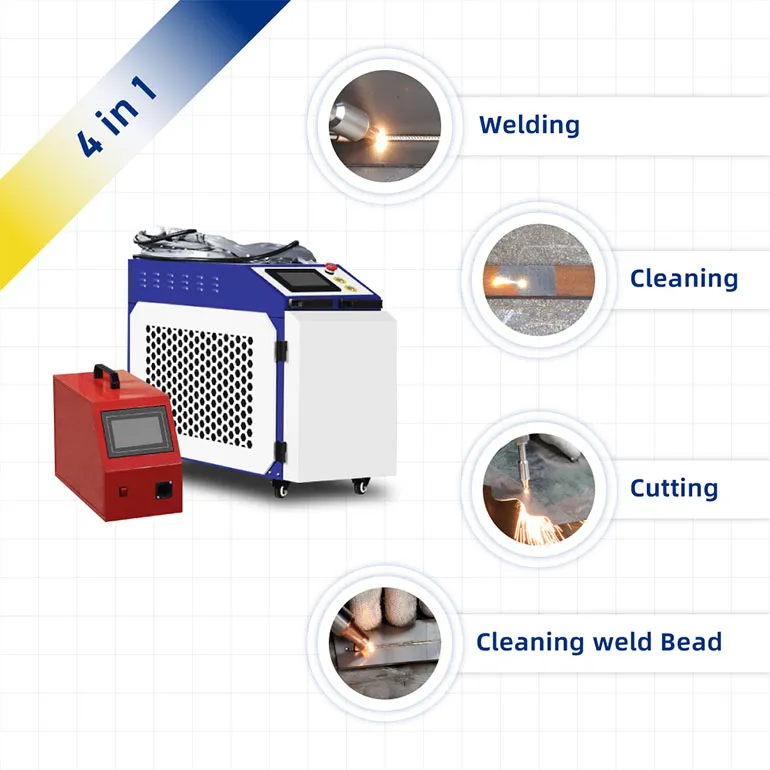

This device offers 4 functions: welding, cutting, cleaning, and weld seam cleaning. The ultra-light laser head features double protective lenses, addressing the vulnerability of traditional handheld welding machines’ focusing lens. it saves customers post-maintenance costs. With an intelligent temperature monitoring system, it automatically detects lens temperature. If it exceeds the set temperature, an alarm is triggered, and the device stops working.

Welding Cleaning Cutting Cleaning weld seam

Product Overview

Item	ZB-HL1000 / 1500 / 2000	ZB-HL3000 / 6000
Laser Power	1000 W / 1500 W / 2000 W	3000 W / 6000 W
Welding Thickness	0.1 – 6 mm	0.1 – 12 mm
Welding Width	0 – 5 mm (Double wire feed: 0 – 8 mm)	0 – 5 mm (Double wire feed: 0 – 8 mm)
Fiber Length	10 / 15 / 20 m (Customizable)	10 / 15 / 20 m (Customizable)
Cooling Method	Constant temperature circulating water cooling	Constant temperature circulating water cooling
Working Voltage	220V 1PH — 380V 3PH ; 50Hz / 60Hz	220V 1PH — 380V 3PH ; 50Hz / 60Hz
Machine Size	98 × 42 × 86 cm	115 × 53 × 100 cm

Product Features

Wire feeder

Standard automatic wire feeding systemand dual motors.

The forward and reverse and the speed of wire feeding can be adjusted throughthe control panel.

Supports single-wire/double-wire/three-wire/four-wire welding, suitable for welds of different widths
NOZZLE

Different shapes of nozzles are suitable for different work.

Need to replace with grooved nozzleswhen used with a wire feeder.

When switching to cutting mode, a special nozzle for cutting is required.
Laser Head

Brand: SUPLaser/Raytools/Qilin/Au3tech/Relfar as optional

Welding/Cleaning/Cutting/Cleaning weld Bead

A variety of angle nozzles can beconfigured to meet the welding needs of different products.
Water Chiller

Brand: S&A, Hanli famous brand as optional.

Adopted water chiller system, the virtu-ous cycle system to better guarantee the operation of the machine.

Industrial chiller, good cooling effect, support the machine working 24 hours per day.
Supply Spare Parts

Lens

Nozzles

Protect glasses

Protective mask filter, screwdriver

Wire and box for collecting thes eparts

Handheld water-cooled laser welding machine Dimensions

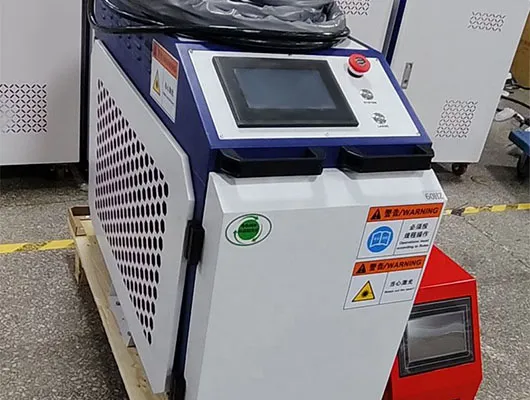

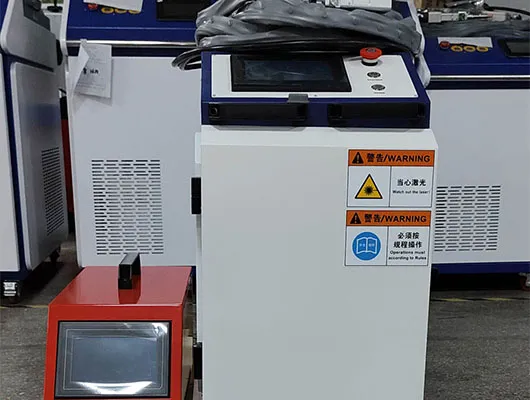

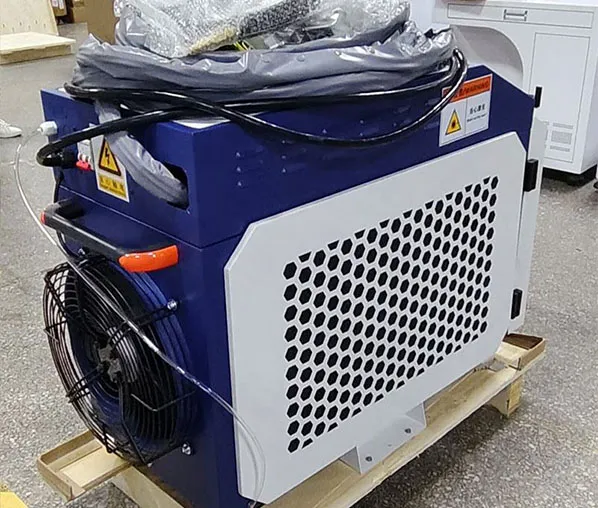

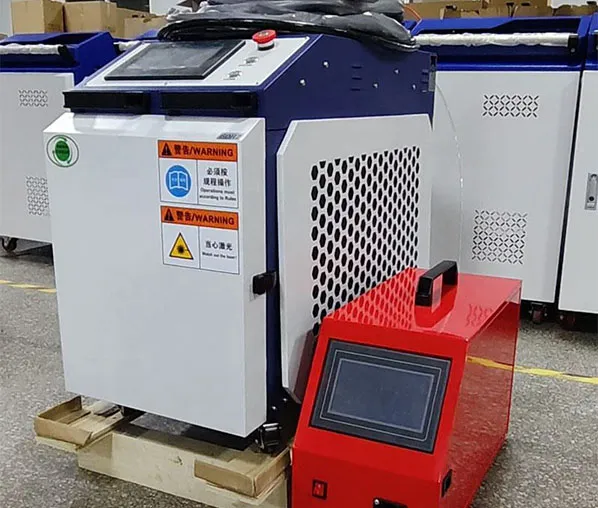

Product Display

Laser welding machines are suitable for various metals such as stainless steel, carbon steel, aluminum alloy, and copper. They are widely used in sheet metal fabrication, kitchenware, automotive manufacturing, electronics, elevator components, hardware products, and aerospace industries. The welding process is efficient, precise, and produces strong, aesthetically pleasing results.
