Cabinet CO₂ Laser Marking Machine Manufacturer

Cabinet CO2 laser marking machine Cabinet CO2 laser marking machine

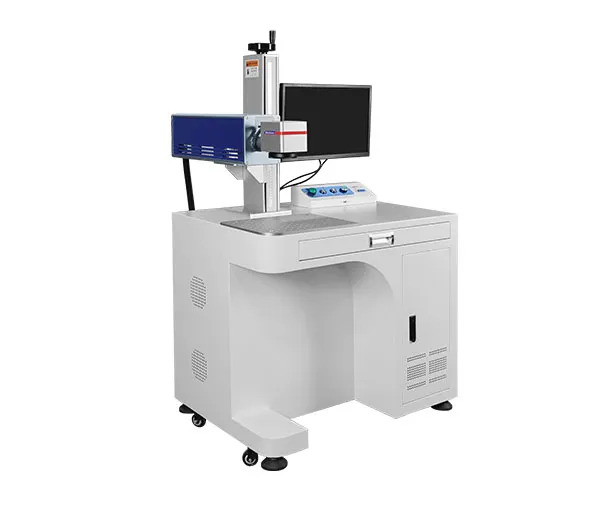

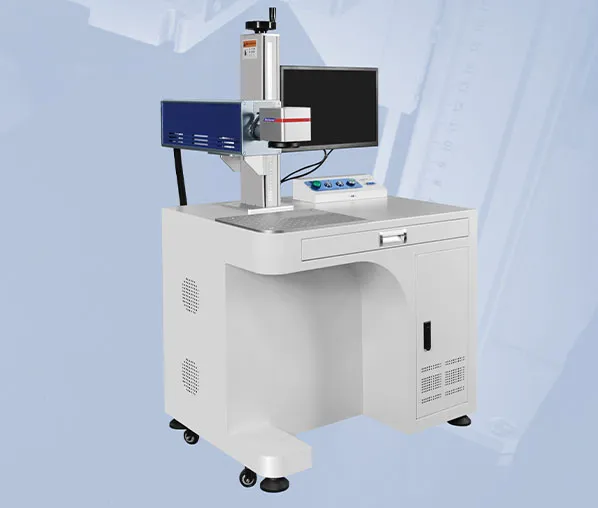

Cabinet CO2 laser marking machine

The Jobon Cabinet CO₂ Laser Marking Machine is a highly efficient and reliable laser marking solution designed for professional industrial and commercial applications. Built with a robust cabinet structure, this CO₂ laser marker supports 40W, 60W, and 100W power options, offering flexible choices to meet diverse marking requirements with stable and consistent performance. Equipped with a high-quality DAVI CO₂ laser source and advanced galvanometer scanning system, the machine delivers accurate, high-resolution marking with a wavelength of 10.64 μm. Its precision marking capability (±0.002 mm repeatability and ±0.01 mm minimum line width) ensures clean, crisp results on a wide range of non-metal materials including wood, acrylic, leather, plastic, glass, packaging materials, and more.

Get a Quote

Product introduction

Equipped with a high-quality Cabinet CO2 laser marking machine and advanced galvanometer scanning system, the machine delivers accurate, high-resolution marking with a wavelength of 10.64 μm. Its precision marking capability (±0.002 mm repeatability and ±0.01 mm minimum line width) ensures clean, crisp results on a wide range of non-metal materials including wood, acrylic, leather, plastic, glass, packaging materials, and more.

Welding Cleaning Cutting Cleaning weld seam

Product Overview

Model	Split	Desktop	Cabinet type
Laser power	40 W / 60 W / 100 W	40 W / 60 W / 100 W	40 W / 60 W / 100 W
Precision	± 0.003 mm	± 0.003 mm	± 0.003 mm
Marking width	75×75 / 100×100 / 175×175 / 200×200 / 300×300 mm	75×75 / 100×100 / 175×175 / 200×200 / 300×300 mm	75×75 / 100×100 / 175×175 / 200×200 / 300×300 mm
Cooling method	Air cooling	Air cooling	Air cooling
Working voltage	110V 1PH –– 220V 1PH；50 Hz / 60 Hz	110V 1PH –– 220V 1PH；50 Hz / 60 Hz	110V 1PH –– 220V 1PH；50 Hz / 60 Hz
Machine size		60×35×78 cm	80×60×136 cm

Product Features

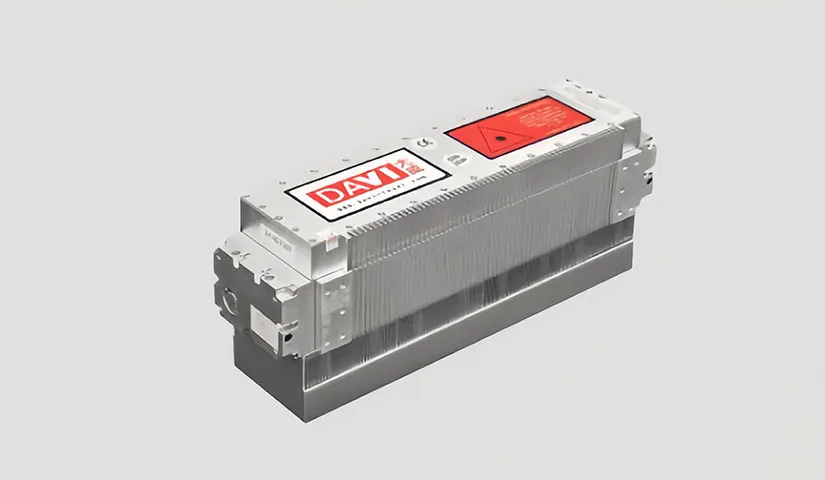

LASER SOURCE

Brand: DAVI

Power: 40W/60W/100W

High stability, long life span 100000+ hours. Output good laser beam.

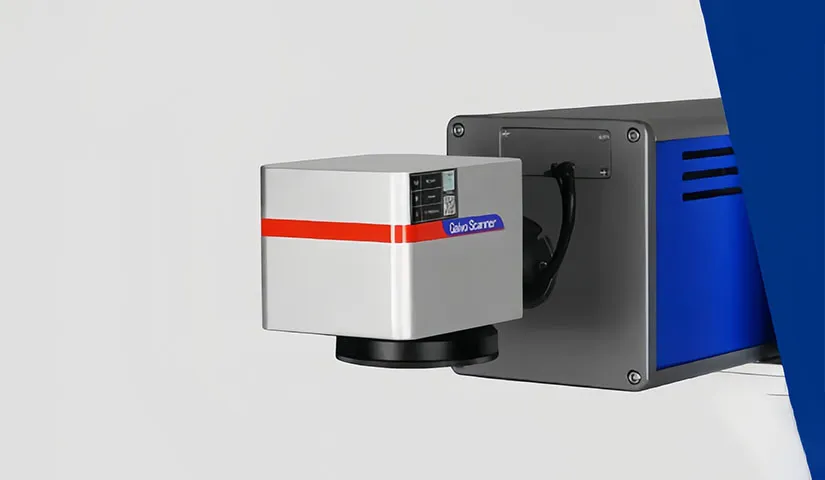

GALVANOMETER HEAD

Famous brand Sino-galvo, galvanometer scanning head.

Precision marking. High quality scan, high speed galvanometer scan adopting CANLAB technology.
FIELD LENS

Famous brand lens to provide precision laser.

High transmittance lens, Multiple working area for optional.

75*75/100*100/175*175/200*200/300*300mm etc.
CONTROL SYSTEM

Genuine EZCAD control system compatible with win7/8/10.

Offer multiple languages, such as Chinese, English, Korean, Japanese, French and German.

It can be embedded in CorelDRAW, CAD, etc. It supports file formats such as AI, DXF, DST, Bmp, jpg, gif, png, tif, etc.
ELEVATOR WHEEL

Aviation aluminum alloy material.

High precision density scale, accurate view of positioning size.
COOLING SYSTEM

The machine using integrated air-cooled cooling system takes up less space and easier to use.
SUPPLY SPARE PARTS

Foot switch*1 set
Positioning Bar*1set
U disk*1PC
Protective glasses*1set
Aluminum card for testing*1box;
Tools*1set
Changeover plug*1PC

Product Display

It is suitable for paper, leather, fabric, organic glass, epoxy resin, acrylic, wool products, plastic, ceramics, crystal, jade, bamboo and wood products. It is widely used in all kinds of consumer goods, food packaging, beverage packaging, pharmaceutical packaging, construction ceramics, clothing accessories, leather, textile cutting, crafts and gifts, rubber products, shell nameplate, denim, furniture and other industries.

Why choose Jobon

Jobon is a professional laser equipment manufacturer offering full-spectrum solutions in welding, cleaning, marking, and cutting. With global voltage compatibility (110V/220V), in-house R&D and production, and CE/ISO certifications, our machines are designed for both performance and reliability across industries. We support OEM/ODM customization, fast delivery from stock or tailored production lines, and multilingual after-sales service for customers in over 60 countries. Whether you’re sourcing for industry, integration, or distribution, Jobon ensures plug-and-play deployment, stable quality, and long-term value for your business.
