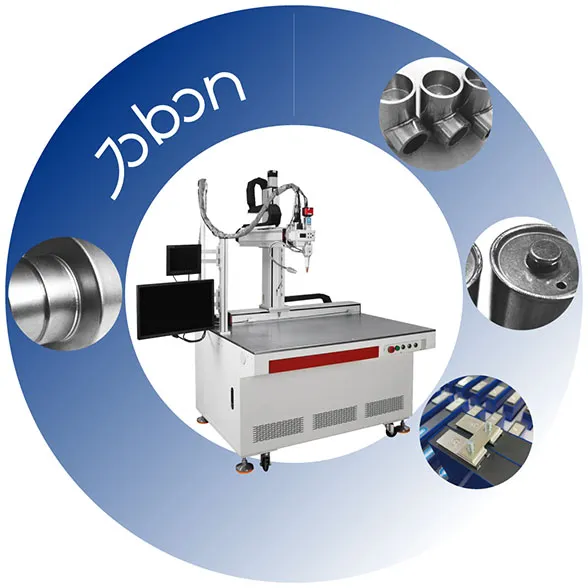

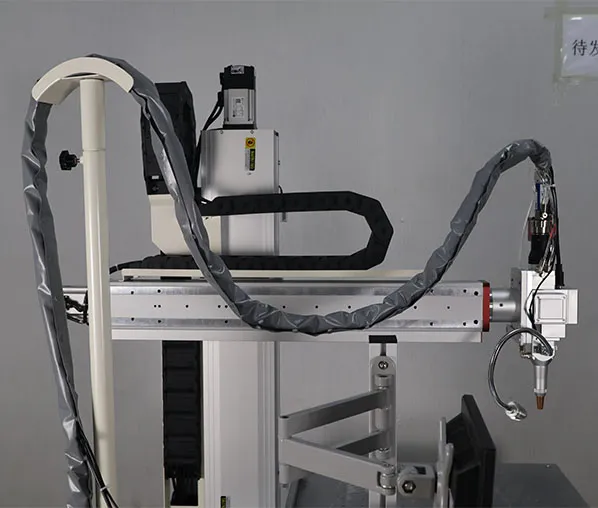

Automatic CNC Platform Laser Welding Machine

The galvanometer laser welding machine is composed of agalvanometer welding head, a laser, a water cooler, amodule and other structures.This galvanometer-type laser welding machine adopts Maxcontinuous laser, high-speed galvanometer, and XYZ 3-axismodule, which can realize batch processing and improvework efficiency.

Get a Quote

Product introduction

Platform Automated Prismatic Cell Lithium Laser Battery Welding Machine For Welding Batteries Lithium Cell

1. The laser beam quality is good, the welding speed is fast, and the welds are strong and beautiful, providing users with efficient welding solutions;

2. Industrial PC control, the workpiece can move in a plane trajectory, and can weld any plane graphics composed of points, straight lines, circles, squares, or straight lines and arcs;

3. High electro-optical conversion rate and low energy consumption, long-term use can save users a lot of processing costs;

4. The equipment has high reliability and can perform continuous and stable processing 24 hours a day, meeting the needs of industrial mass production and processing;

5. We have strong customization capabilities for special aircraft and can tailor-make exclusive models according to customer needs.

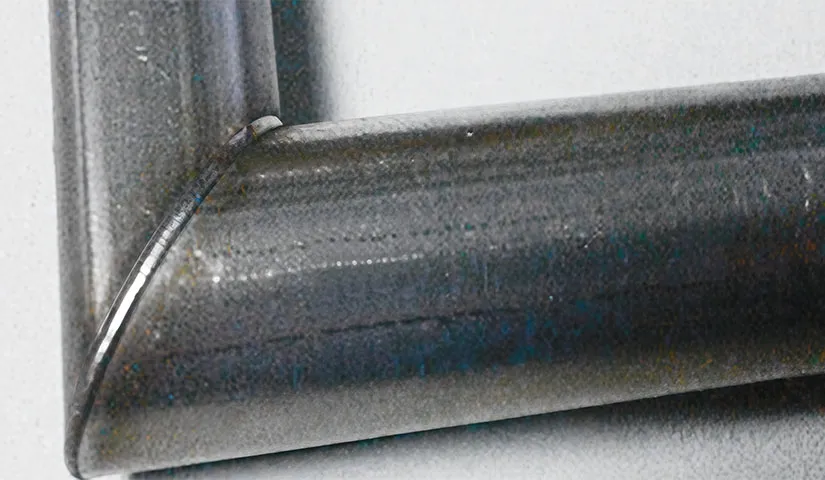

Welding Cleaning Cutting Cleaning weld seam

Product Overview

Product Name	Platform laser welding machine
Power	1500W/2000W/3000W
Laser Wavelength	1064nm
Power Stability	3%/8H
Armor Cable Length	10M/15M
Laser Source	MAX/Raycus/BWT
Service Life	100000H
Laser frequency	50-50000HZ
Laser Head	Qilin/Suplaser/KRD
Control System	Earain
Motor	Yaskawa/Leadshine/Panasonic
Power Adjustment Range	10%-100%
Total Power	4.5KW/6KW/8KW
Electricity Demand	AC220V/30A; AC220V/60A
Cooling Method	Water cooling
Operating Environment Requirements	Temperature 0-40℃; Humidity 20%-80%

Product Features

Stable laser source

Brand: MAX / Raycus / JPT / BWT Optional

Power: 1000W / 1500W / 2000W / 3000W / 6000W

We offer you world top class laser from China.With
1,000,000 service life. Support 2 years warranty.

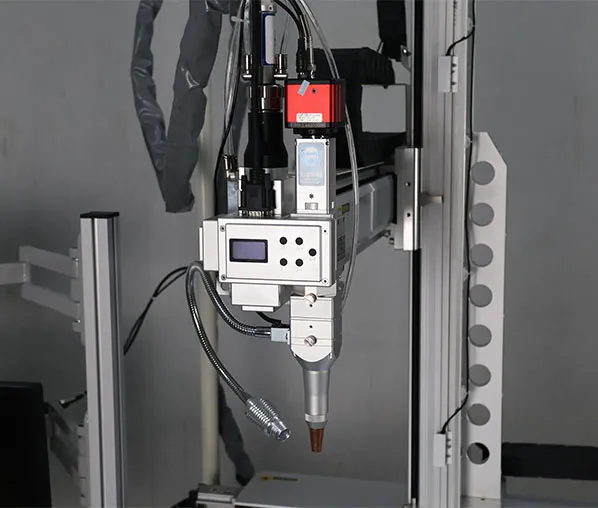

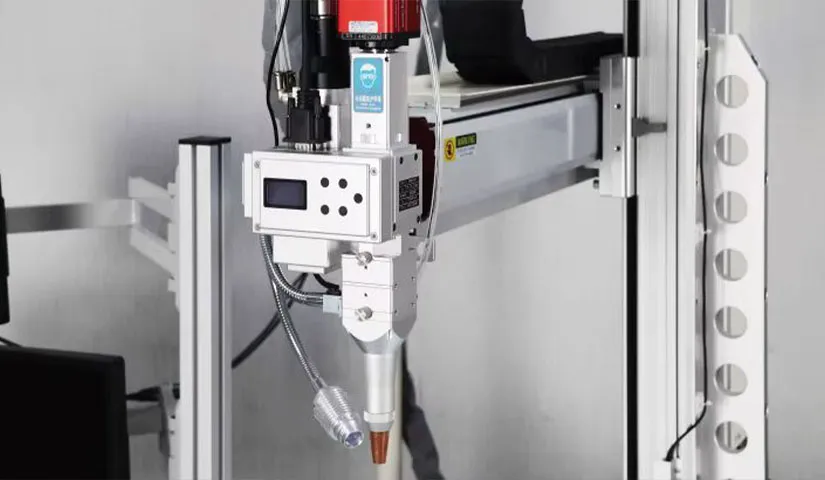

Laser Head

Brand: Qilin/suplaser/KRD as optional

The laser beam has good quality and fast welding speed.

The weld is firm and beautiful, providing users with efficient welding solutions.

Equipped with CCD.

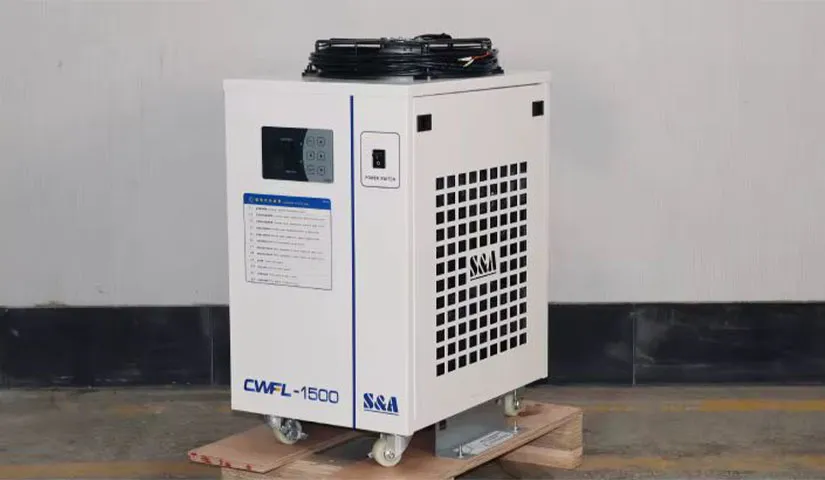

Water Chiller

Adopted water chiller system, the virtuous cycle system to better guarantee the operation of the machine.

When using an industrial chiller, pure water is used in summer,and antifreeze is used when the room temperature is below 5 degrees Celsius in winter.Switch back to pure water when the temperature warms up.

Automatic CNC Platform Laser Welding Machine Dimensions

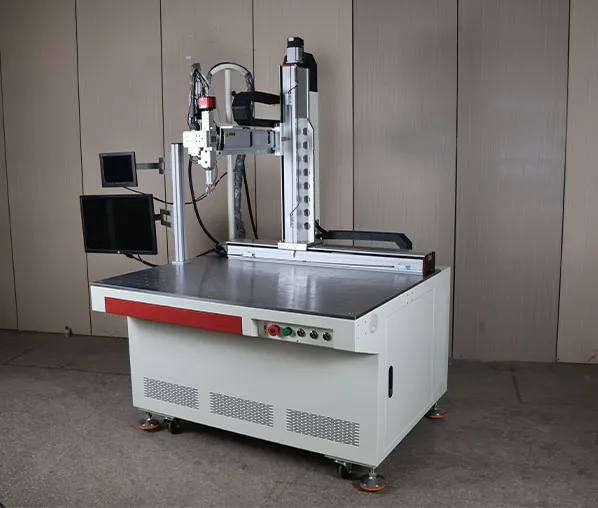

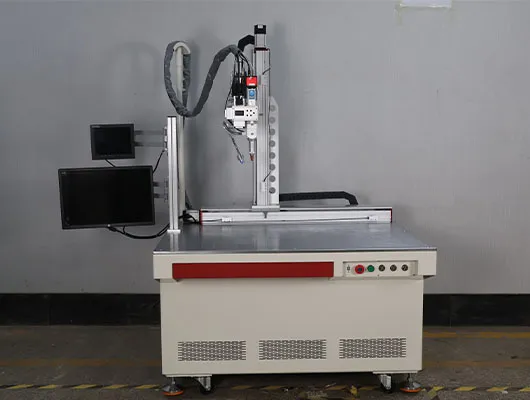

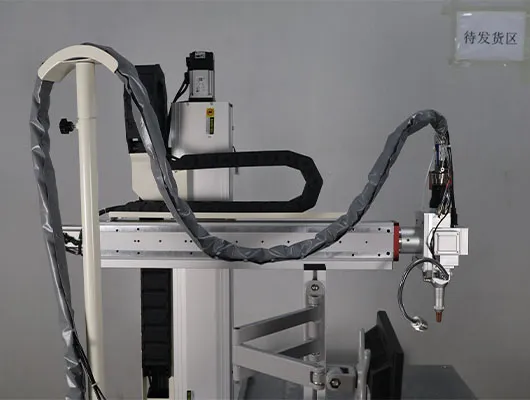

Product Display

The laser beam has good quality, the welding speed is fast, and the weld is firm and beautiful

Industrial PC control, the workpiece can move in a plane trajectory, and any plane shape can be welded

High electro-optical conversion rate, low energy consumption, and low cost

Can process continuously and stably for 24 hours, and can be mass-produced

Exclusive customized models can be tailored according to customer needs
